| Automation Grade | Automatic |
| Usage/Application | Industrial |
| Voltage | 220V |
| Flow Rate | 51-100 m3/hr |
| Vessel Diameter | 200-400 mm |
| Media Quantity | 50-100 kg |
| Packaging Type | Box |
| Customisation | Customised |
| Material | Mild Steel |
| Country of Origin | Made in India |
.
Applications : –
Multi-Media Filtration is effective in removing dirt, silt, rust, and other suspended particles from a water stream with a filtration level of approximately 5 to 15 microns.
Multi-Media Filters contain several types of media and gravel under bedding. Multi-media filtration is a proven design concept; the coarse media layers in the top of the tank trap large particles, and successively smaller particles are trapped in the finer layers of media deeper in the bed The result is a highly efficient filtering since removal takes place throughout the entire bed. Multi-Media depth filters typically remove particles 5-15 microns in size or larger. All media included in our filters are carefully selected according to particle size, so the media retains its stratification during backwash and rinse. Automatic backwashing system removes the trapped contaminants within the filter bed and washes them down the drain.
Benefit:
Protect downstream equipment and appliancesRemoves Suspended Solids from Water to Approximately 5 to 15 MicronsHighly Efficient and High Capacity FiltrationAutomatic Backwash Feature Reduces Maintenance, Maintains Filter Efficiency, and Prolongs the Life of the Filtration Media
| Brand | Brim |
| Form | Granules |
| Packaging Detail | 25 Kg Bag |
| Color | black |
| Particle size | 0.3 – 2.0 mm |
| Usage/application | iron removal in water treatment |
| Country of Origin | Made in India |
| Packaging Type | Bag |

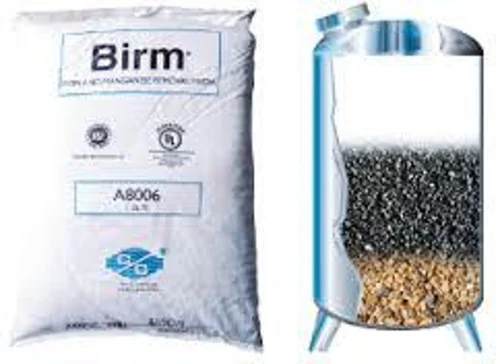

BirmMedia is a black catalytic media used for removing soluble iron, manganese, hydrogen sulfide, arsenic and radium from water supplies. The media has unique characteristics in addition to its catalytic property which facilitates the oxidation reduction reaction of iron and manganese. Birm Media can be used at high operating temperatures and high differential pressures without breakdown of the media and is classified as a “high rate” media where the filters can be run at very high linear velocities with excellent results. Unlike other medias, it does not require extensive pre-conditioning. Birm Media effectively removes iron, manganese and hydrogen sulfide from natural waters. Water for industrial and domestic uses must be substantially iron and manganese free. In many countries it is a requirement that water for municipal use should not contain iron and manganese concentrations of greater than 0.2 and 0.05 ppm respectively, and preferably below0.05 and 0.02 ppm. In certain industries like pulp and paper mills, tanneries, textile plants, dye houses and laundries, it is almost impossible to operate with iron or manganese bearing waters since they would produce objectionable stains, streaks, spots and off-colors on many manufactured products. Iron and manganese also foul ion exchange resins. Hence, it is necessary to include a pretreatment stage in most ion exchange processes

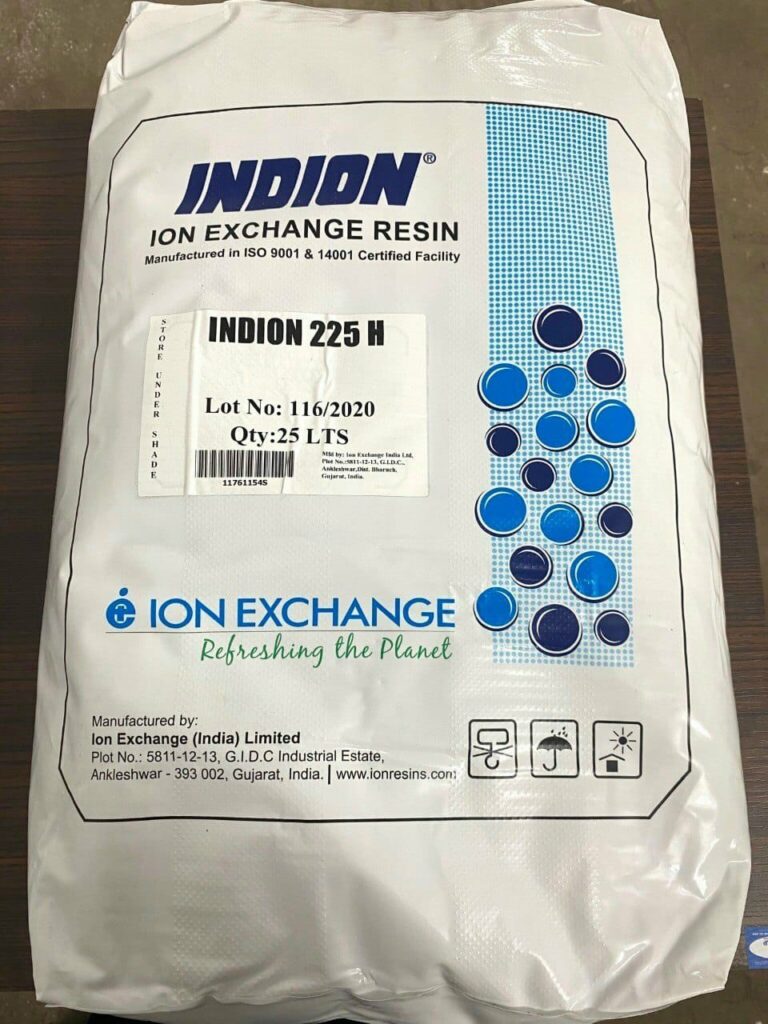

| Brand | Ion Exchange |
| Form | Granular |
| Packaging detail | 50 Litre Poly Bag |
| Packaging Size | 50 ltr |
| Color | Golden |
| Packaging Type | Bag |
| Usage/Application | Water Softener,DM plant |
| Bead Size | 0.5 – 1.5 mm |
